74LS651
Octal inverting bus transceiver and register with independent bus control and 3-state outputs

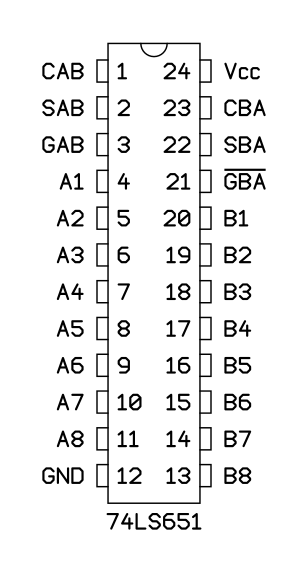

Pinout:

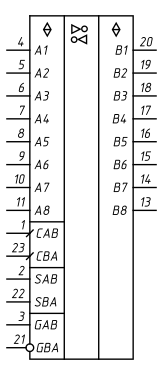

Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-001, Variation AF)

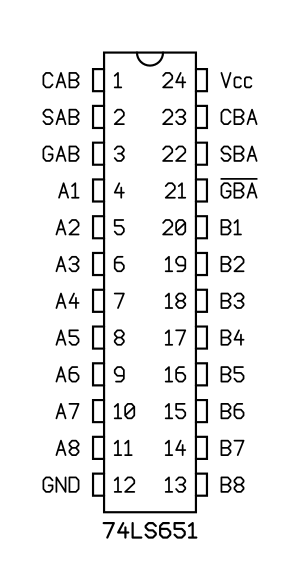

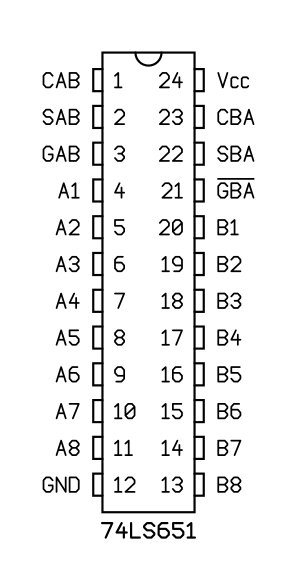

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS651NT
PDIP-24N (JEDEC MS-001, Variation AF)
package diagram
