74LS653

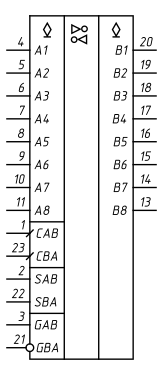

Octal inverting bus transceiver and register with independent bus control and open collector outputs

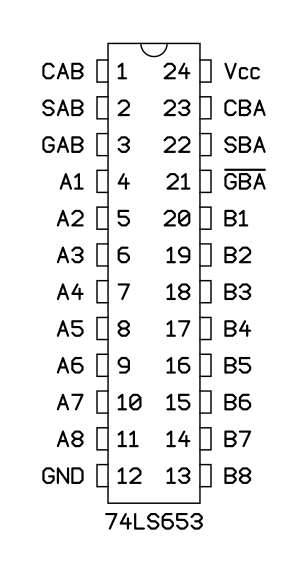

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-001, Variation AF)

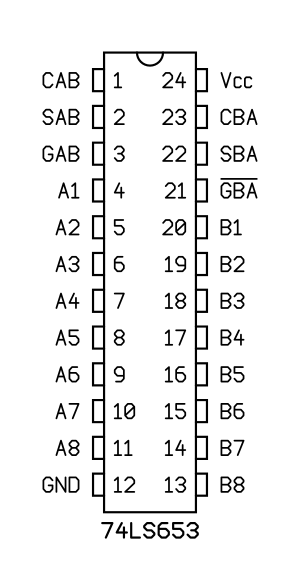

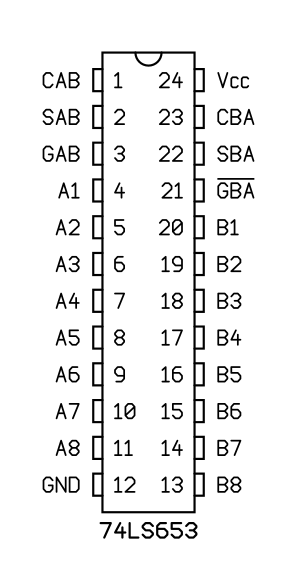

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS653NT
PDIP-24N (JEDEC MS-001, Variation AF)

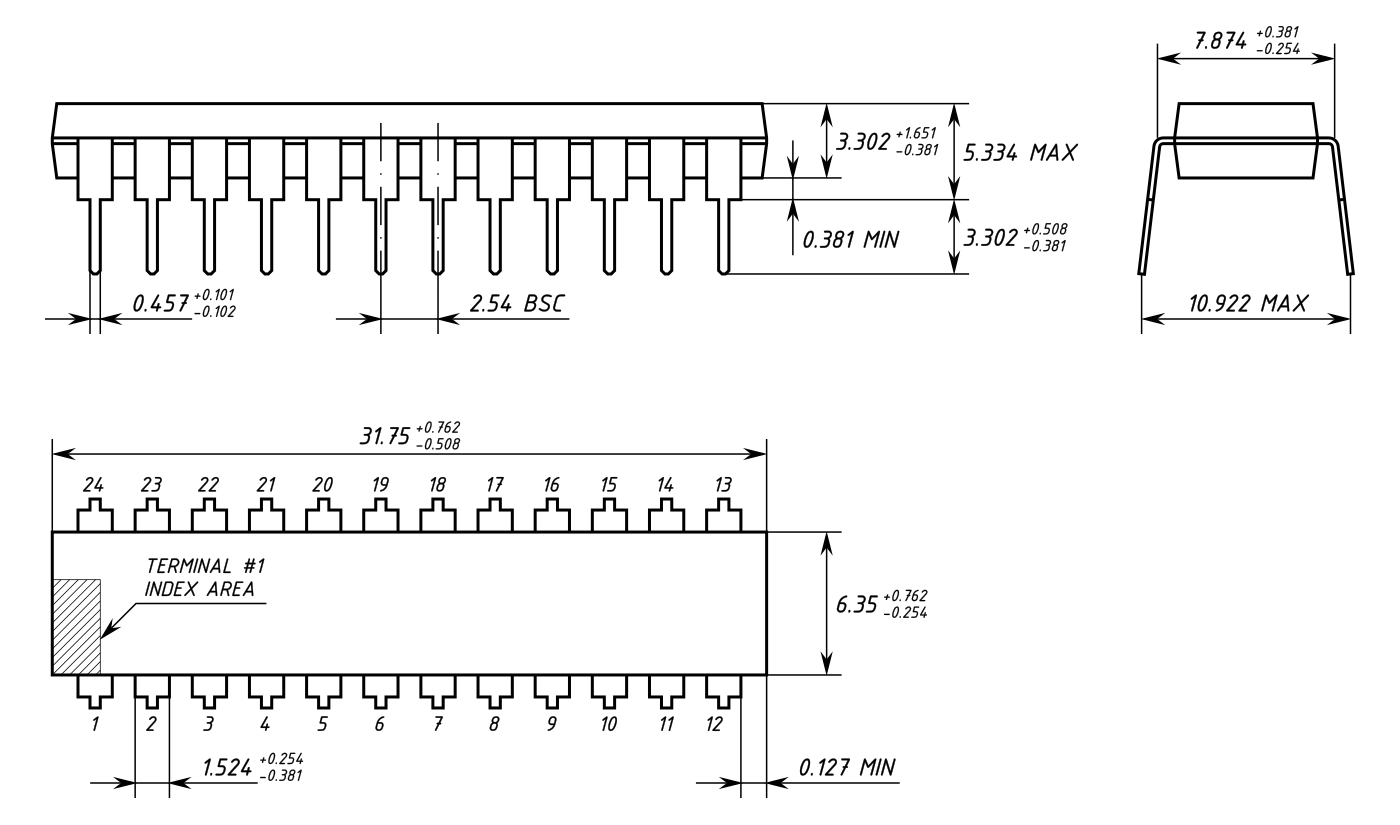

package diagram
