74LS668
Synchronous 4-bit up/down decade counter
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

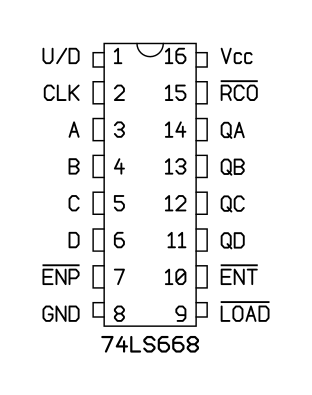

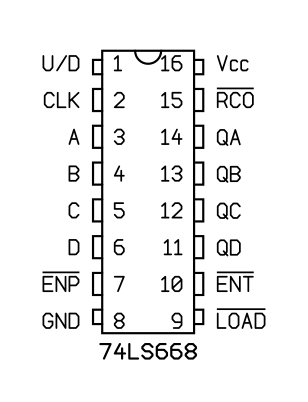

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS668N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
