Category:
Name:74LS673
Short description:16-bit serial-in, serial/parallel-out shift register

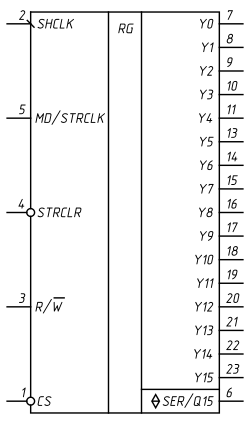

Symbol:

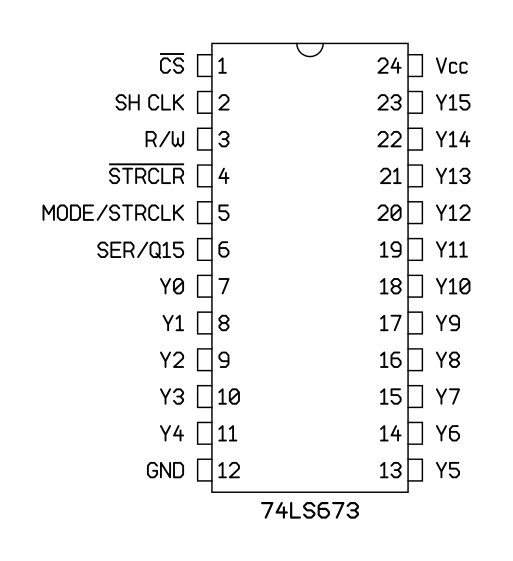

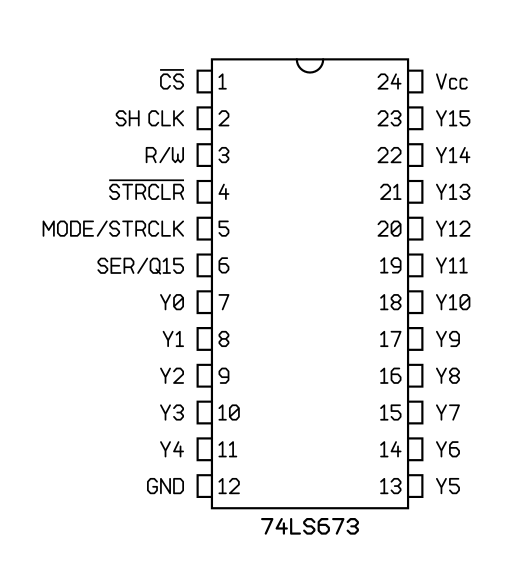

Pinout: Default Style: GOST

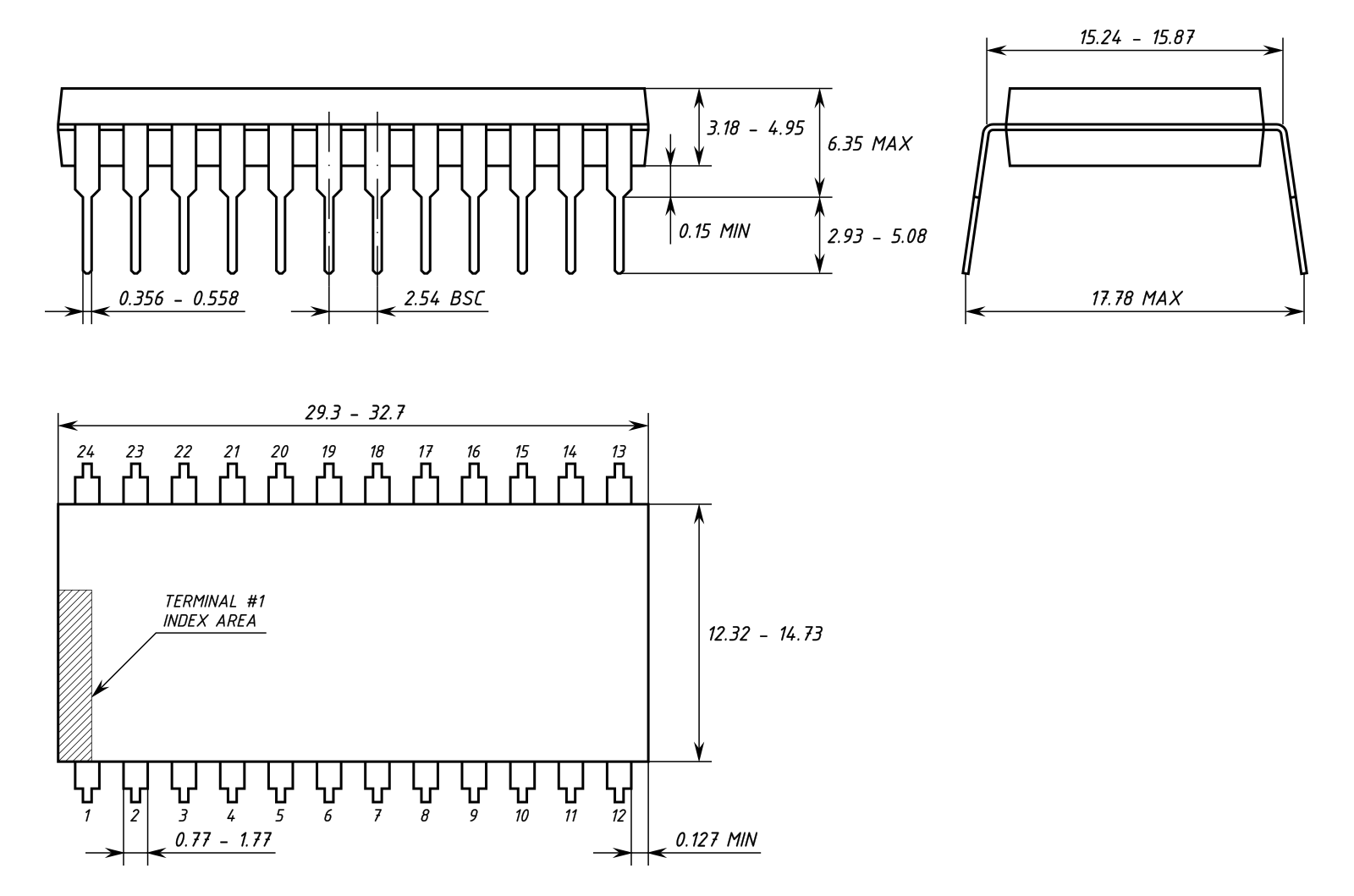

PDIP-24W (JEDEC MS-011, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS673N
