74LS674
16-bit parallel-in, serial-out shift register

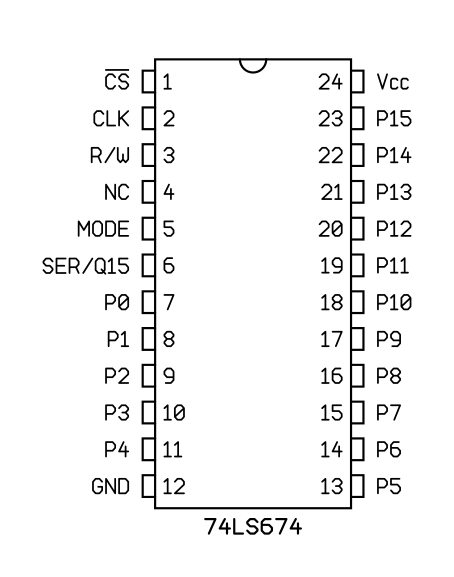

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-011, Variation AA)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS674N
PDIP-24W (JEDEC MS-011, Variation AA)
package diagram
