74LS682
8-bit magnitude/identity comparator

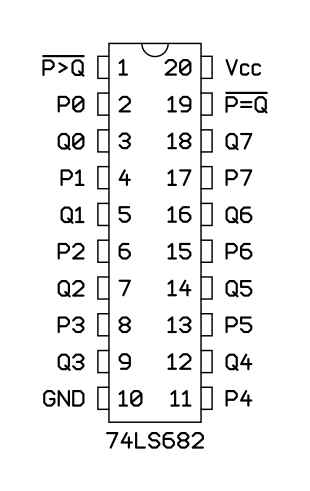

Pinout:
Default

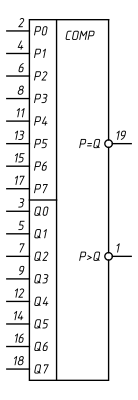

Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

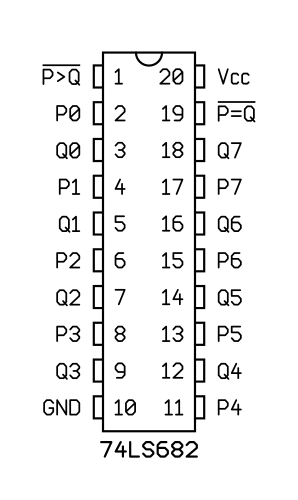

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS682N
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
