Name:74LS686
Short description:8-bit magnitude/identity comparator

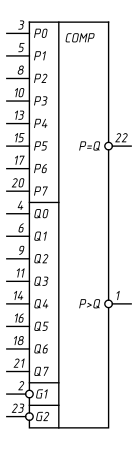

Symbol:
Pinout: Default Style: GOST

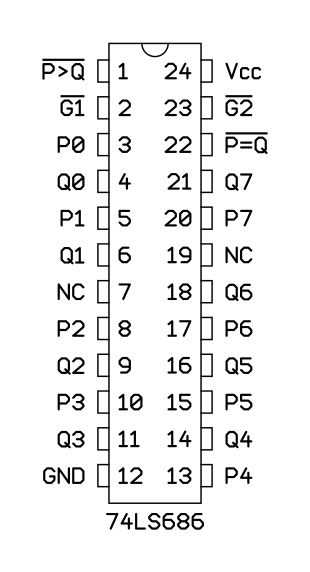

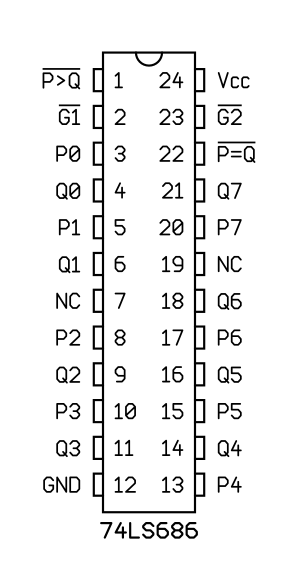

PDIP-24N (JEDEC MS-001, Variation AF) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS686NT
