Name:74LS687
Short description:8-bit magnitude/identity comparator with open collector outputs

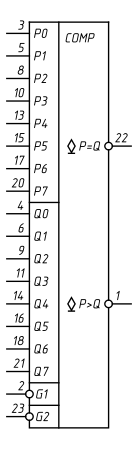

Symbol:
Pinout: Default Style: GOST

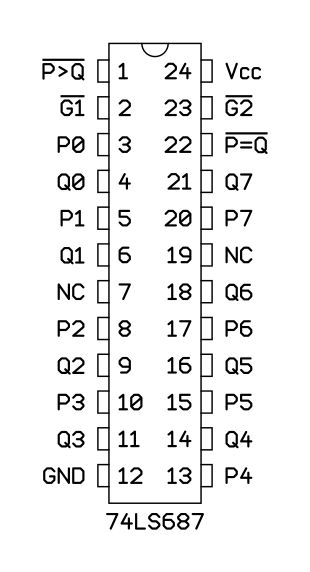

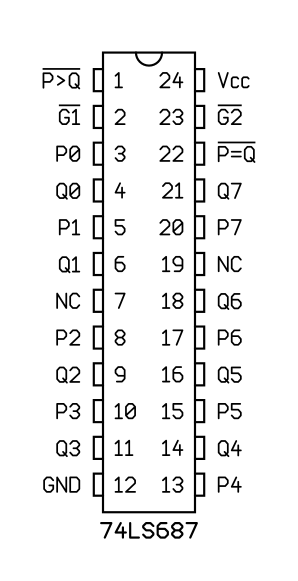

PDIP-24N (JEDEC MS-001, Variation AF) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS687NT
