74LS718
Programmable binary counter

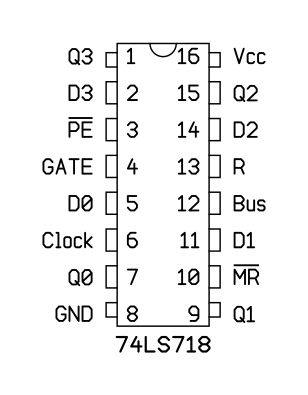

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

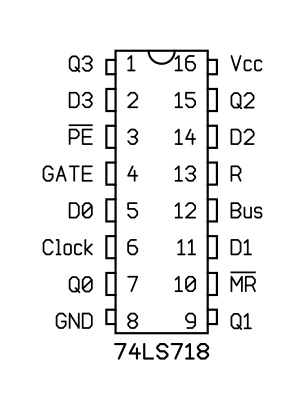

Pinout
Manufacturer:
Motorola
Part number:
SN74LS718N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
