74LS724
Voltage controlled oscillator
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-8
(JEDEC MS-001, Variation BA)

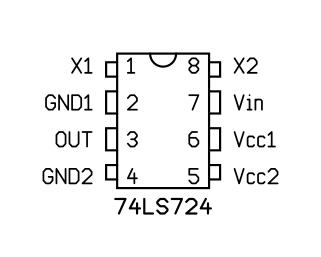

Pinout
Manufacturer:
Motorola
Part number:
SN74LS724N
PDIP-8 (JEDEC MS-001, Variation BA)
package diagram
