74LS748
8-line to 3-line priority encoder

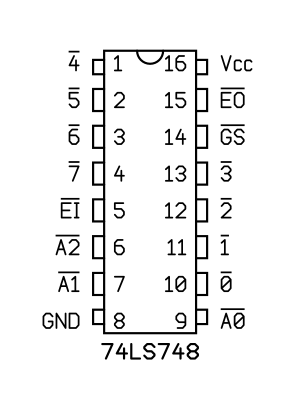

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

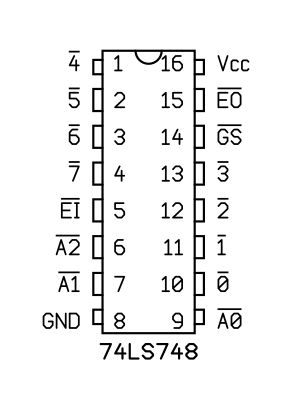

Pinout
Manufacturer:
Motorola
Part number:
SN74LS748N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
