Name:74LS795
Short description:Octal buffer with 3-state outputs
Symbol:

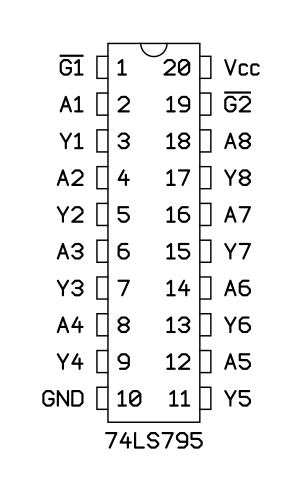

Pinout: Default Style: GOST

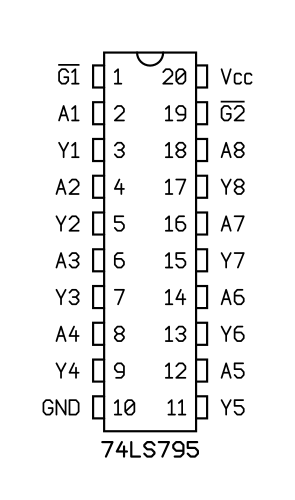

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
MotorolaSN74LS795N
