74LS798
Octal inverting buffer with 3-state outputs

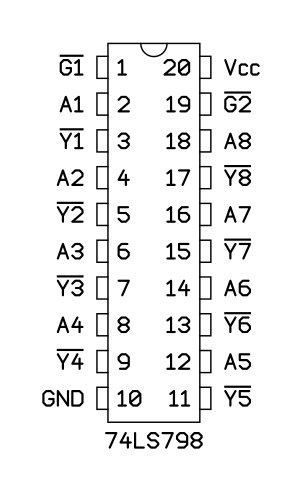

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

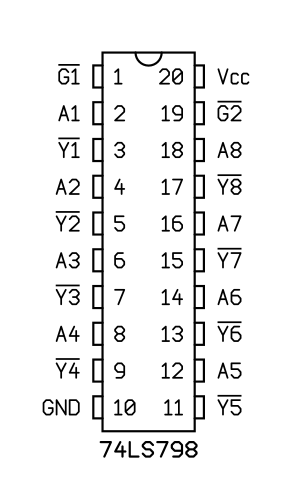

Pinout
Manufacturer:
Motorola
Part number:
SN74LS798N
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
