8283
Octal latch with inverted outputs

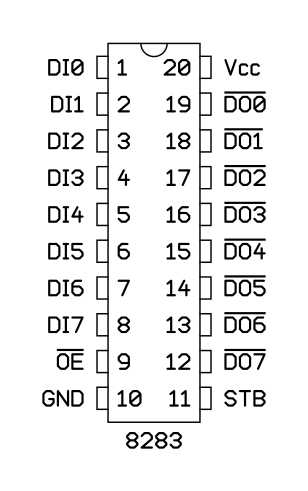

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

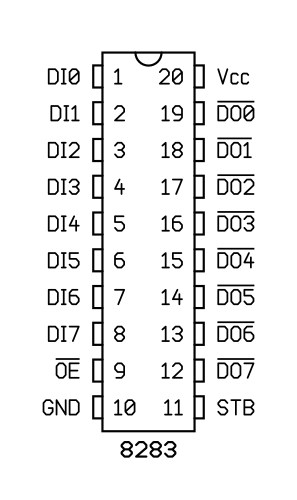

Pinout
Manufacturer:
Intel
Part number:
P8283
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
