Category:

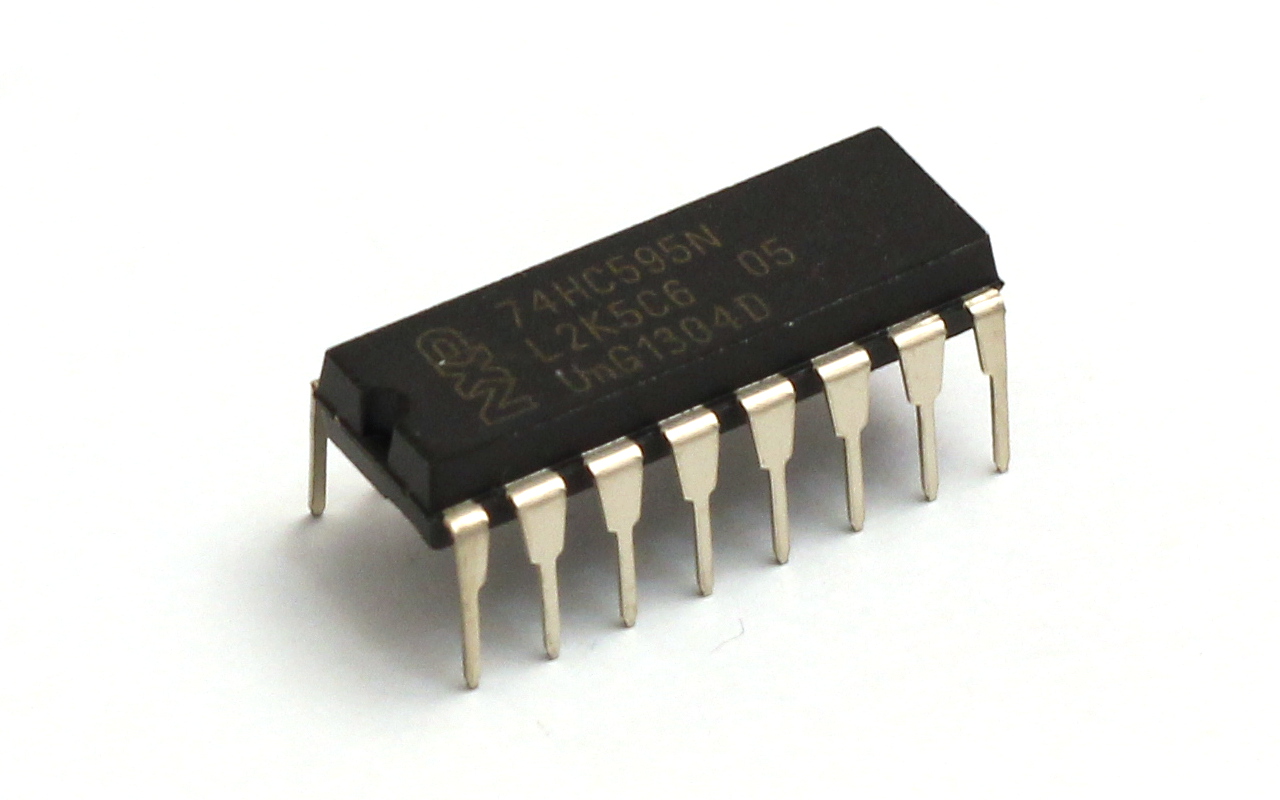

Name:74HC595
Short description:8-bit serial-in, serial or parallel-out shift register with output latches; 3-state
Symbol:

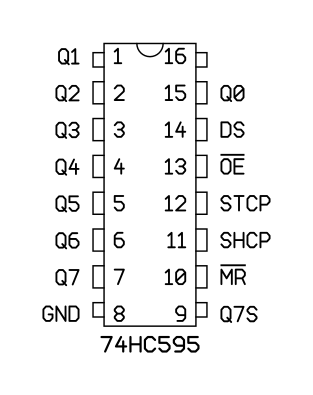

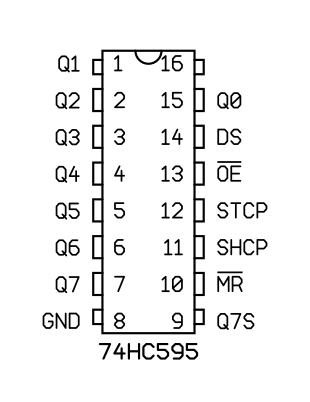

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
NXP Semiconductors74HC595N
Fairchild SemiconductorMM74HC595N
Texas InstrumentsSN74HC595N
