74LS09
Quad 2-input AND gate with open-collector output
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

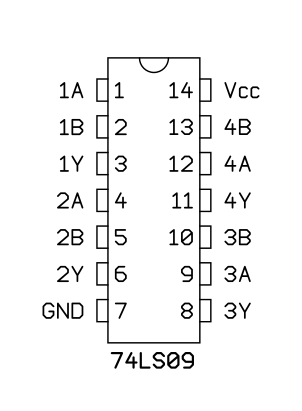

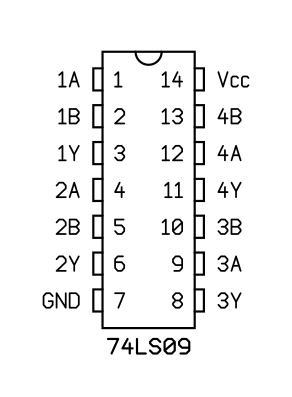

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS09N
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
