Name:74LS26
Short description:Quad 2-input NAND gate with hight-voltage open-collector outputs
Symbol:

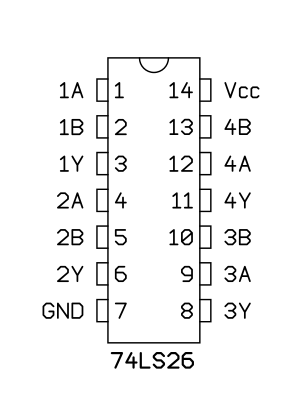

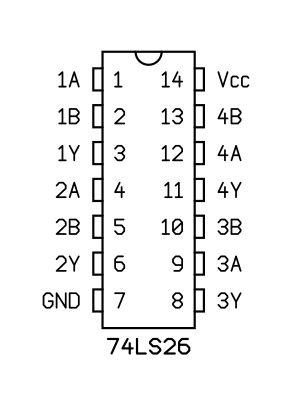

Pinout: Default Style: GOST

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS26N
