74LS48
BCD to 7-segment decoder with internal pull-up resistors
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

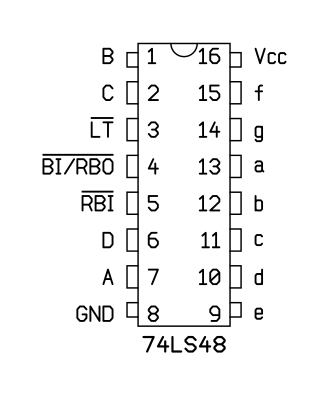

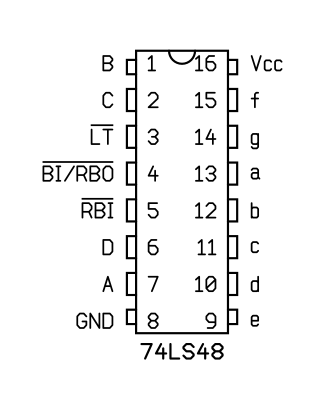

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS48N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
