74LS63
Hex current-sensing interface gates with totem pole outputs
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

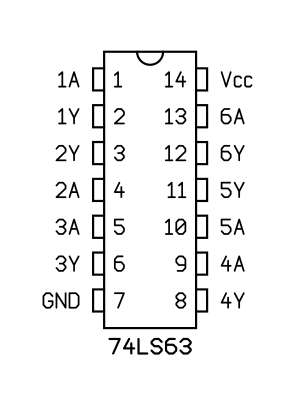

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS63
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
