Category:
Name:74LS69
Short description:Dual 4-bit binary counter
Symbol:

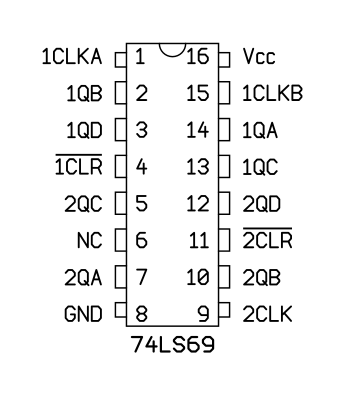

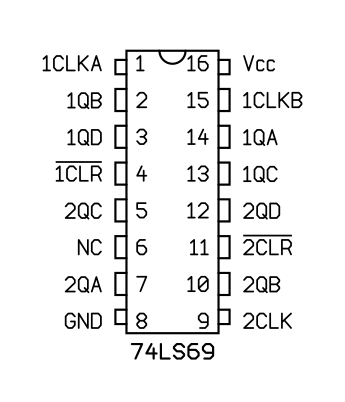

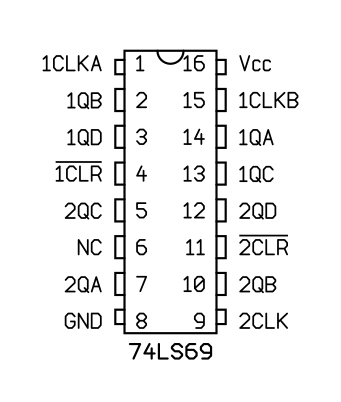

Pinout: Default Style: GOST

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS69N
