74LS74
Dual D-type positive-edge-triggered flip flops with preset and clear

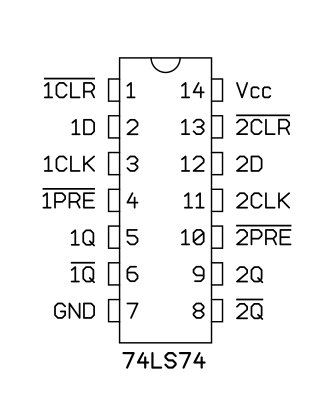

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

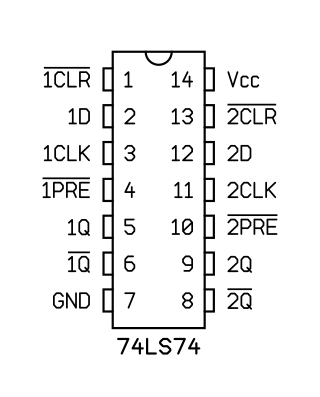

Pinout
Manufacturer:
Texas Instruments
Part number:

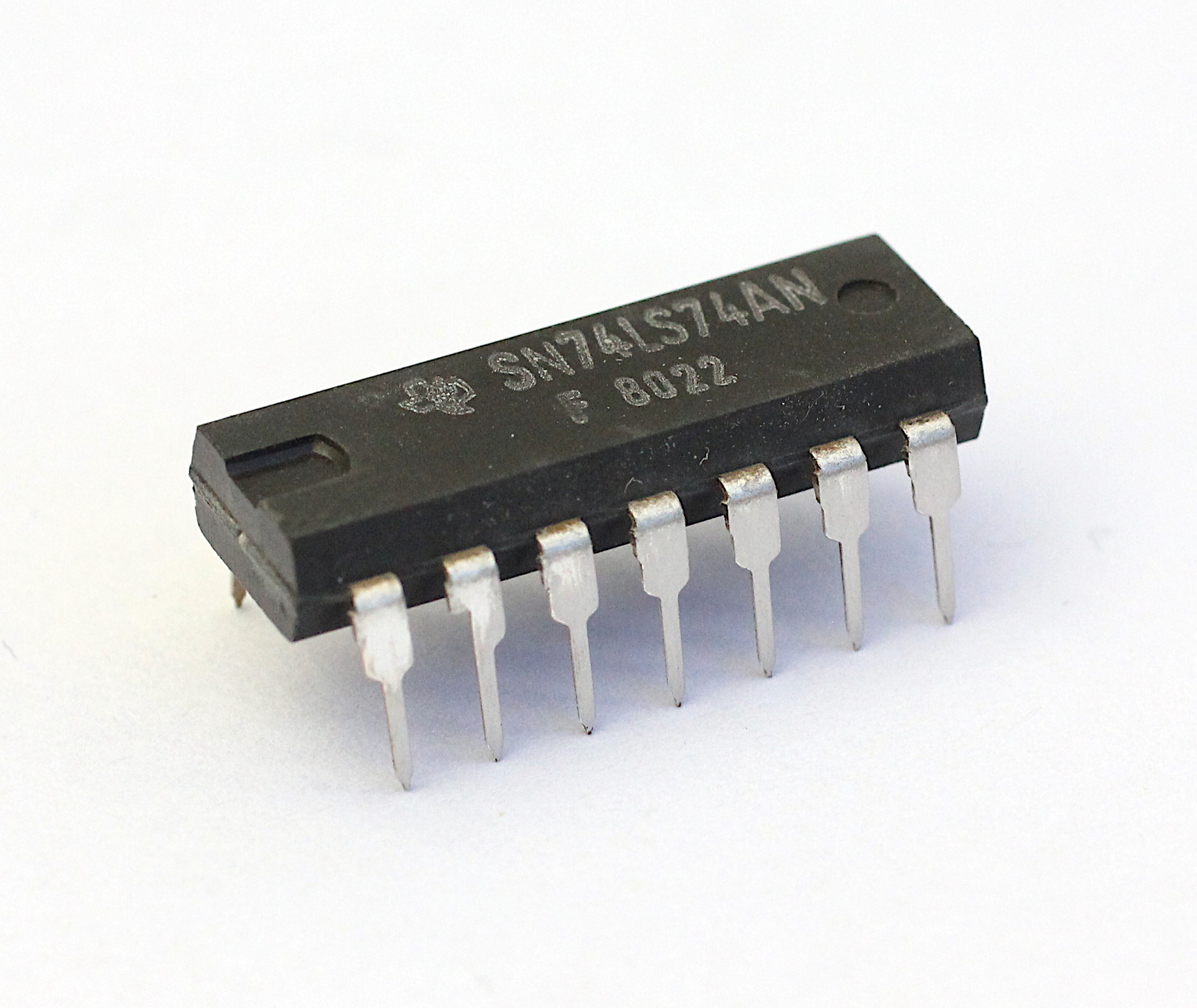

SN74LS74AN
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
