74LS77
4-bit bistable latches
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

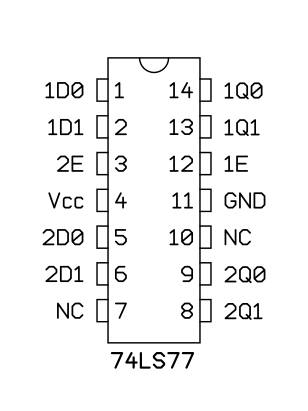

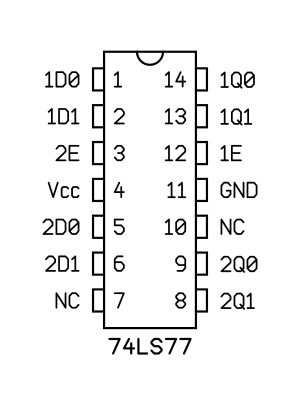

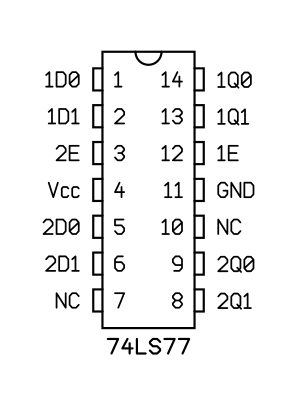

Pinout
Manufacturer:
Motorola
Part number:
SN74LS77
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
