74LS78
Dual J-K flip-flop with preset, common clock, and common clear

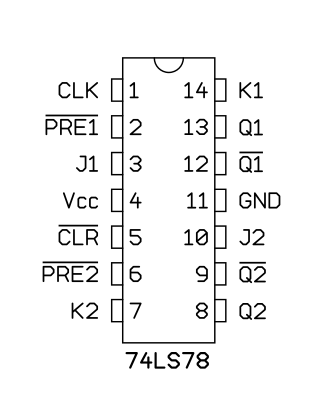

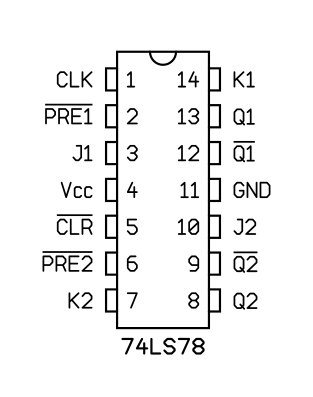

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

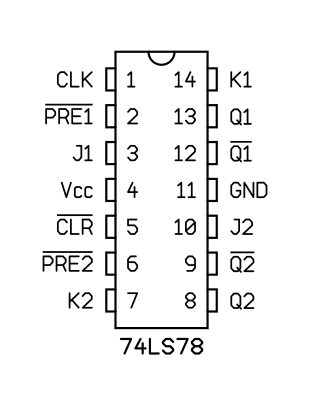

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS78AN
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
