74LS96
5-bit shift register with parallel-in and parallel-out

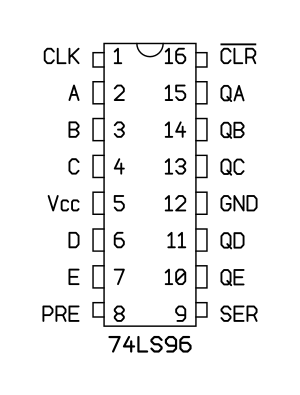

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

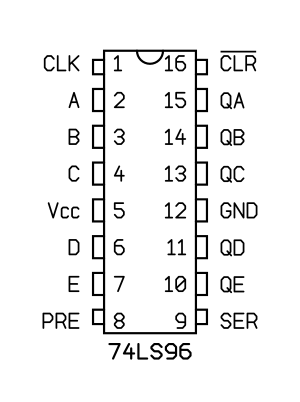

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS96N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
