74LS113
Dual J-K negative-edge-triggered flip-flop with preset

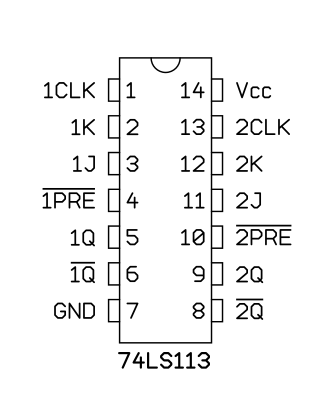

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

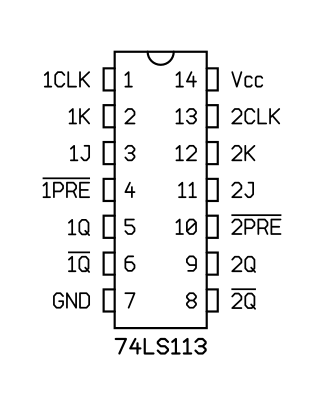

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS113AN
PDIP-14 (JEDEC MS-001, Variation AA)

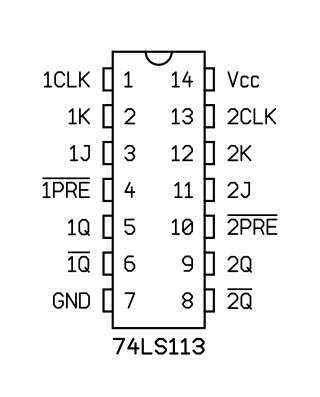

package diagram
