Name:74LS136
Short description:Quadruple 2-input Exclusive-OR gates with open collector outputs
Symbol:
Pinout: Default Style: GOST

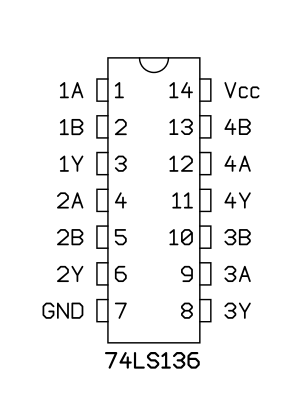

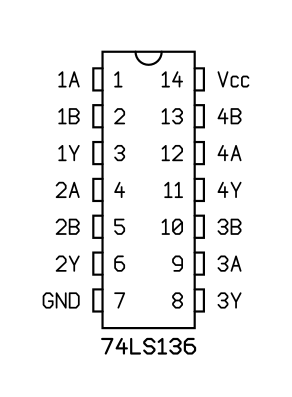

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS136N
