74LS147
10-line to 4-line priority encoder
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

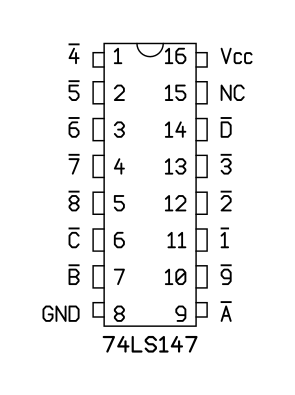

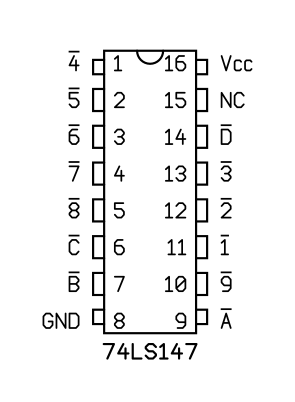

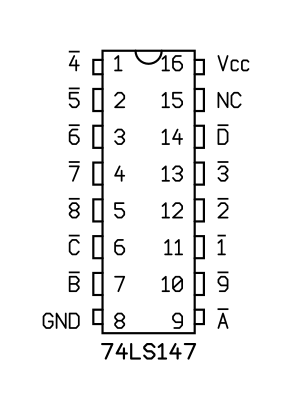

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS147N
Manufacturer:
Motorola
Part number:
SN74LS147N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
