Name:74LS156
Short description:Dual 2-line to 4-line decoder/demultiplexer with open collector outputs
Symbol:
Pinout: Default Style: GOST

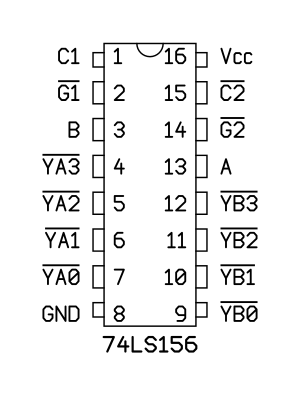

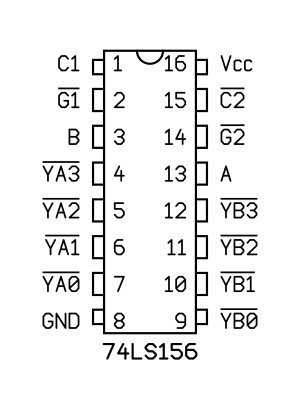

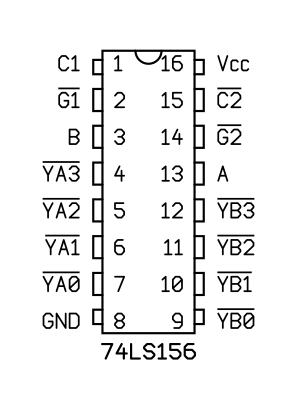

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS156N
