Name:74LS165
Short description:Parallel load 8-bit shift register

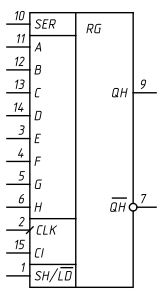

Symbol:
Pinout: Default Style: GOST

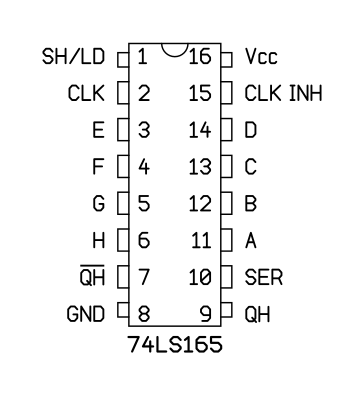

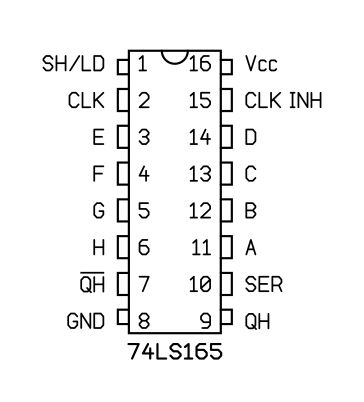

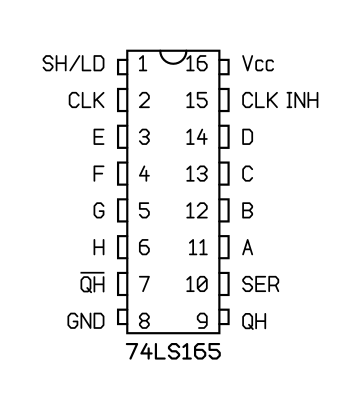

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS165AN
