74LS168
Synchronous 4-bit up/down decade counter
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

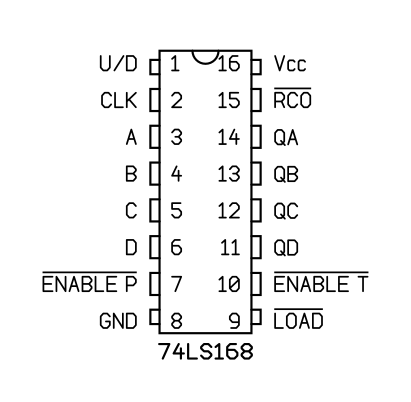

Pinout
Manufacturer:
National Semiconductor
Part number:
DM74LS168N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
