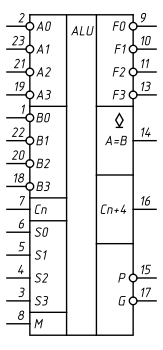

74LS181
Arithmetic logic units/function generator
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-011, Variation AA)

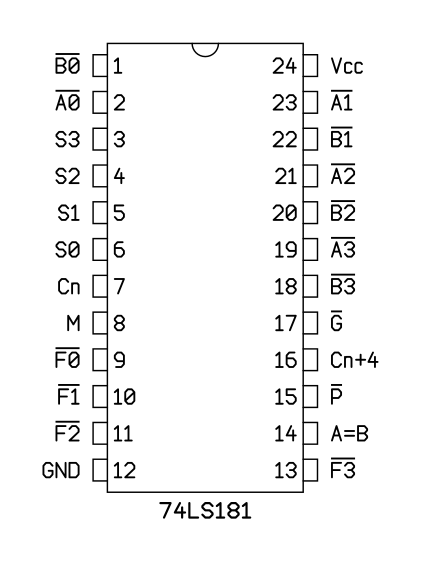

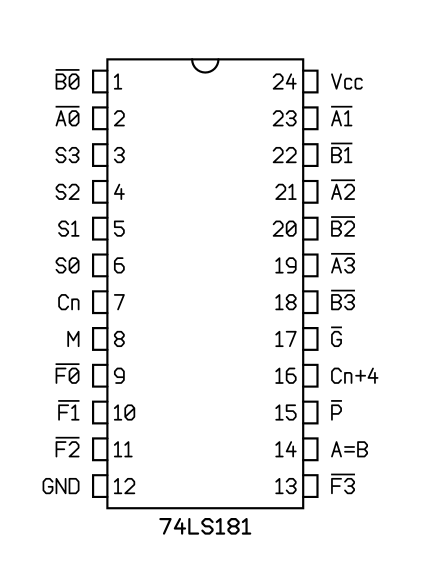

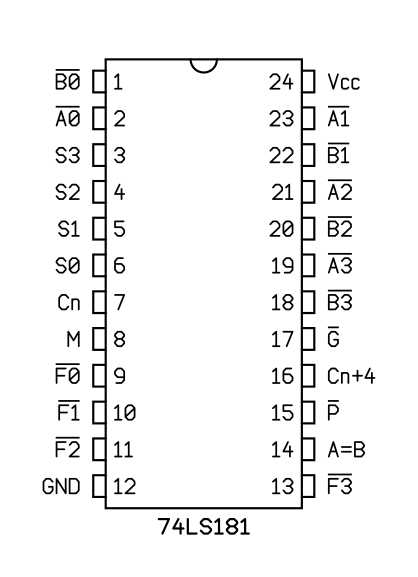

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS181N
PDIP-24W (JEDEC MS-011, Variation AA)
package diagram
