Name:74LS190
Short description:Synchronous presettable up/down 4-bit decade counter
Symbol:

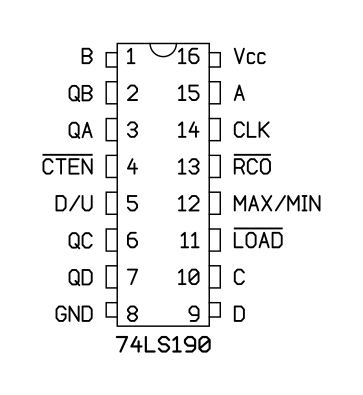

Pinout: Default Style: GOST

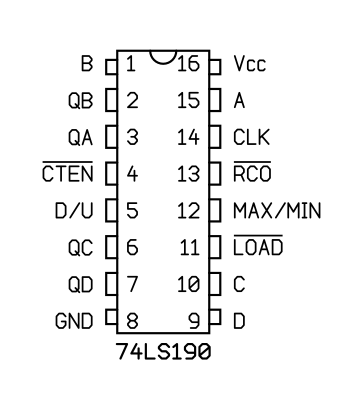

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS190N
