Category:
Name:74LS192
Short description:Synchronous 4-bit up/down decade counter with dual clock and clear
Symbol:

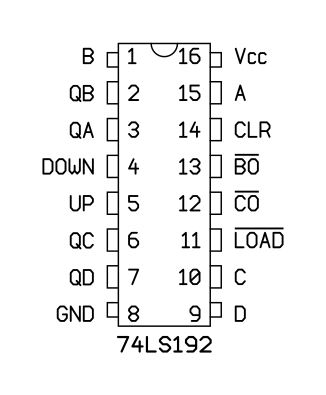

Pinout: Default Style: GOST

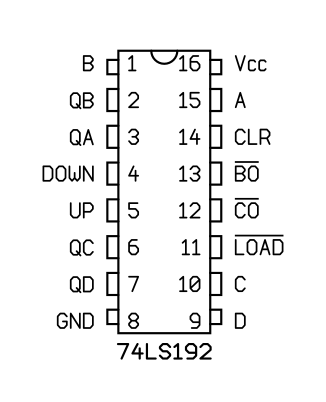

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS192N
