Name:7402
Short description:Quad 2-input NOR gate
Symbol:

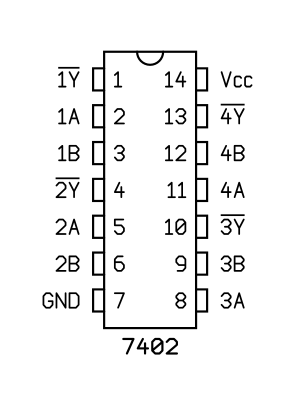

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7402
