Name:7407
Short description:Hex buffer gate with high voltage open-collector output
Symbol:
Pinout: Default Style: GOST

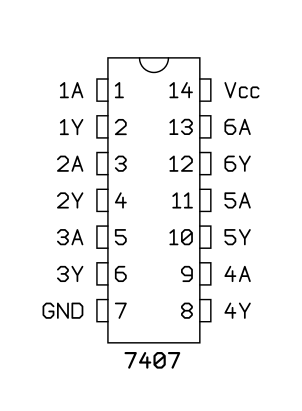

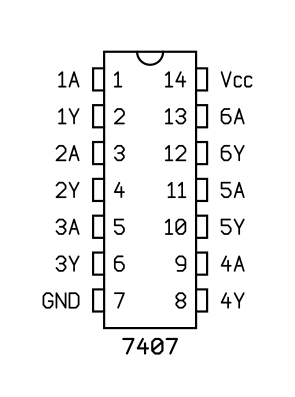

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7407N
