Category:
Name:7410
Short description:Triple 3-input NAND gate
Symbol:

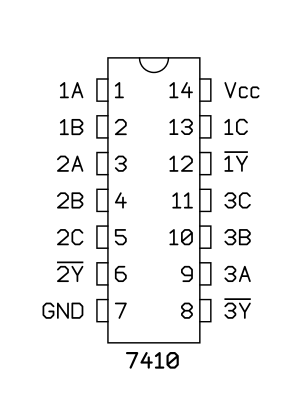

Pinout: Default Style: GOST

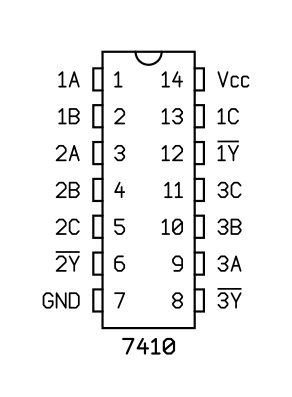

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7410N
