Name:7412
Short description:Triple 3-input NAND gate with open-collector output
Symbol:

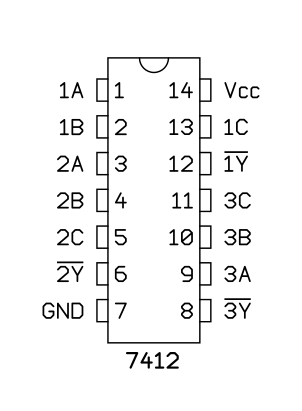

Pinout: Default Style: GOST

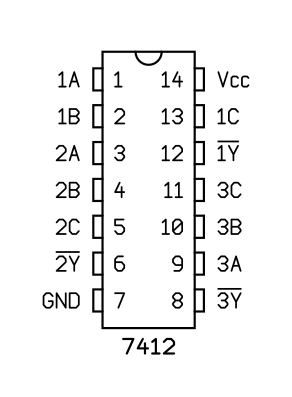

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7412N
