Name:7414
Short description:Hex Schmitt-Trigger Inverters
Symbol:

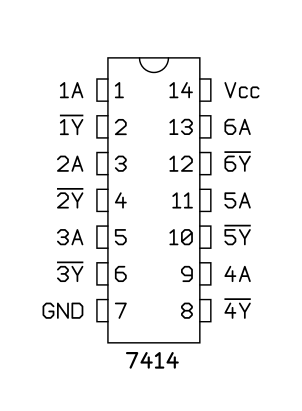

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN7414N
