Category:
Name:7425
Short description:Dual 4-input NOR gates with strobe
Symbol:

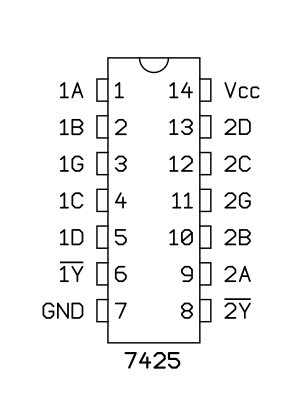

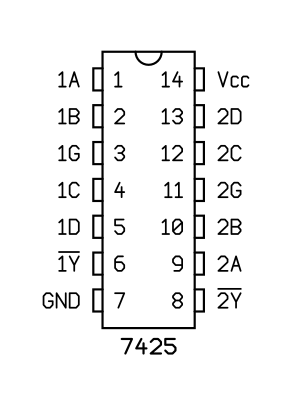

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7425N
