Name:7426
Short description:Quad 2-input NAND gate with hight-voltage open-collector outputs
Symbol:

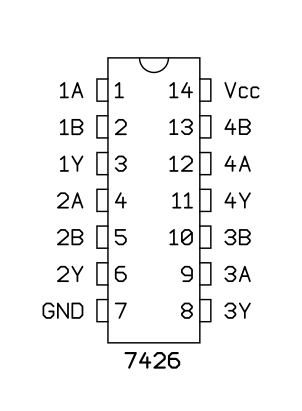

Pinout: Default Style: GOST

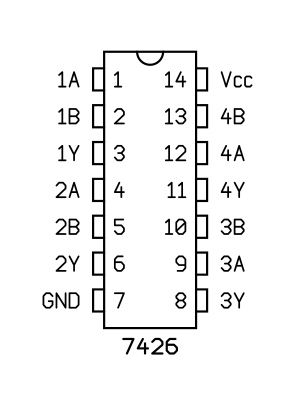

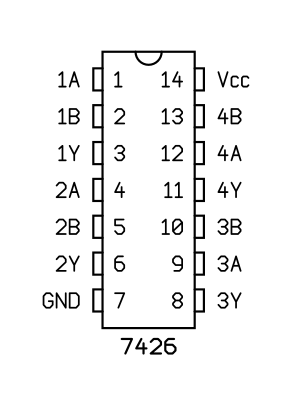

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7426N
