Category:
Name:7427
Short description:Triple 3-input NOR gate
Symbol:

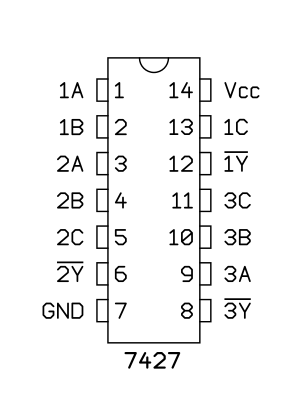

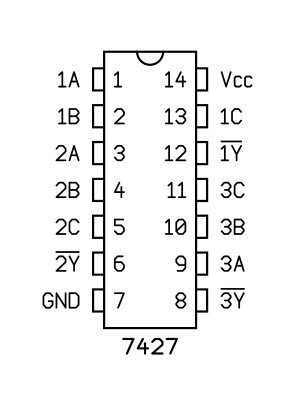

Pinout: Default Style: GOST

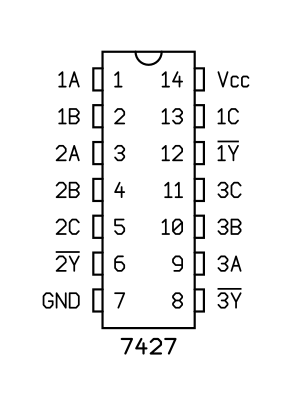

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7427N
