Name:7439
Short description:Quad 2-input positive NAND buffers with open collector outputs
Symbol:

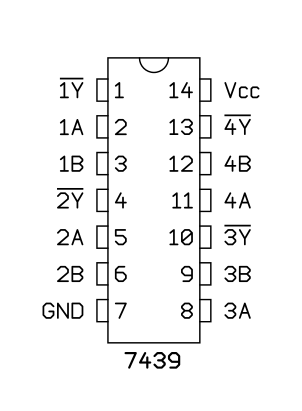

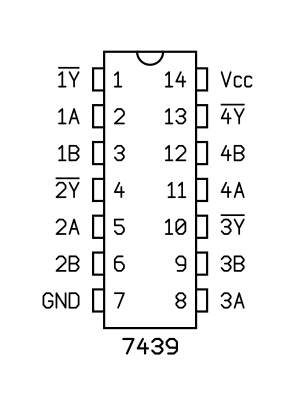

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7439N
