Category:
Name:7442
Short description:BCD to decimal decoder
Symbol:

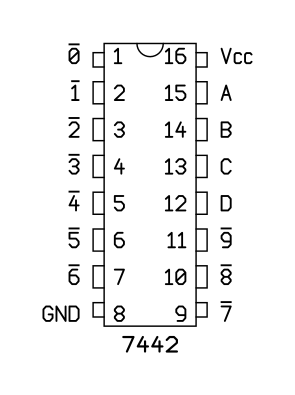

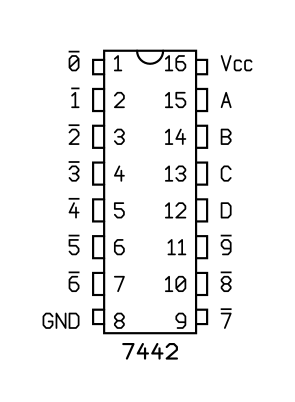

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN7442AN
