Name:7447
Short description:BCD to 7-segment decoder/driver with open-collector active-low outputs
Symbol:

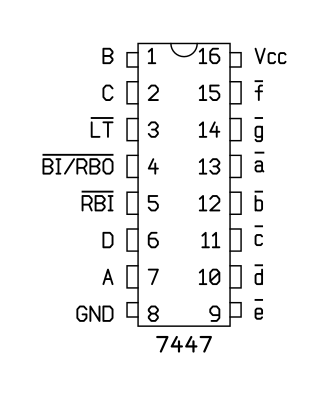

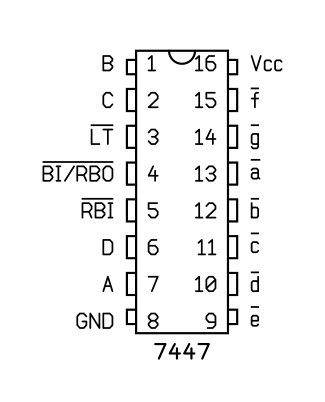

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN7447AN
