Components
Category:
Name:7448
Short description:BCD to 7-segment decoder with internal pull-up resistors
Symbol:

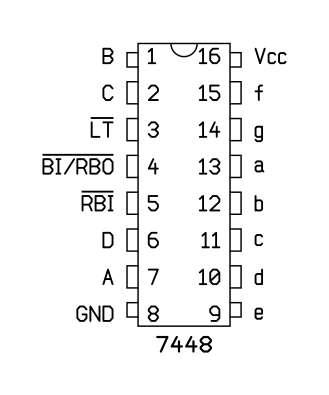

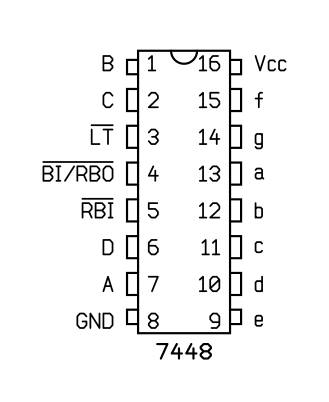

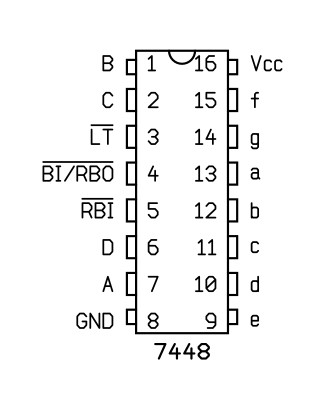

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN7448N
