Name:7454
Short description:2-2-2-2-input AND-OR-INVERT gate
Symbol:
Pinout: Default Style: GOST

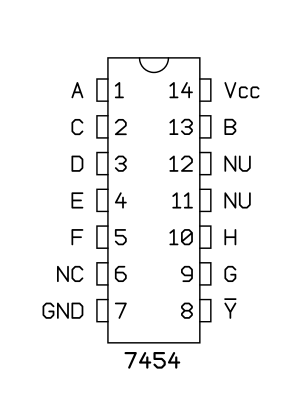

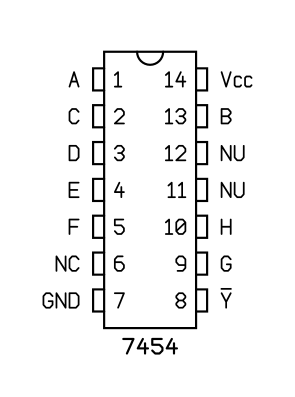

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7454N
