Name:7472
Short description:AND gated J-K master-slave flip-flop with asynchronous preset and clear
Symbol:

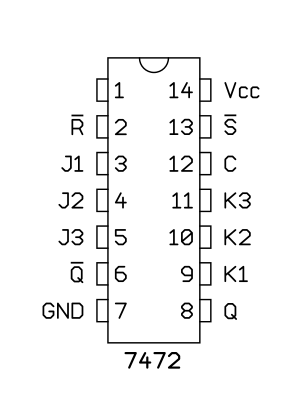

Pinout: Default Style: GOST

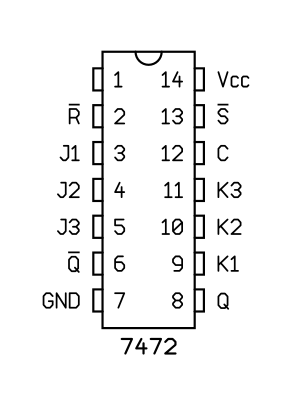

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7472N
