Name:7474
Short description:Dual D-type positive-edge-triggered flip flops with preset and clear
Symbol:

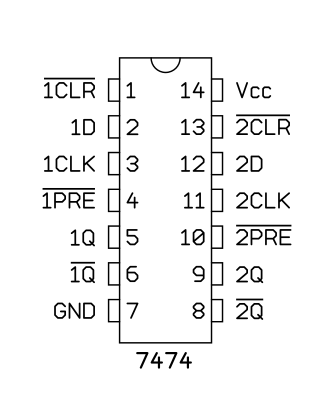

Pinout: Default Style: GOST

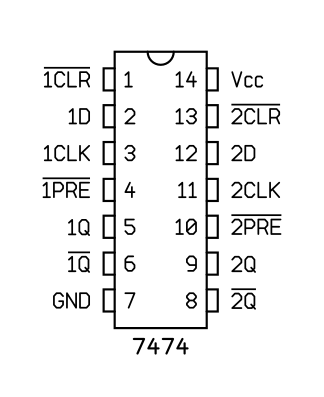

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7474N
