Name:7475
Short description:4-bit bistable latch with complementary outputs

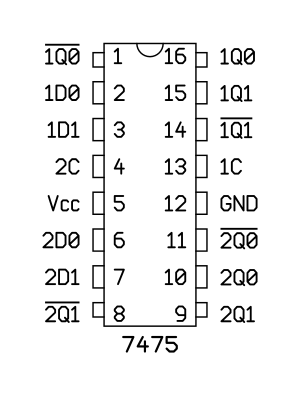

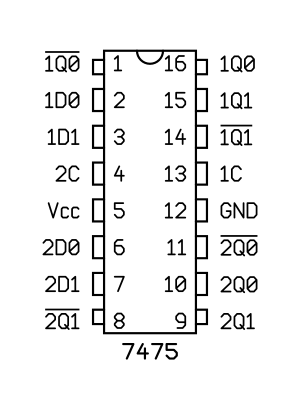

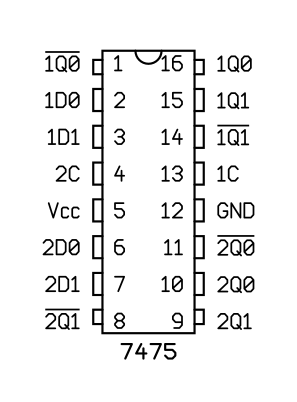

Symbol:

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN7475
