Category:
Name:7476
Short description:Dual J-K flip-flop with preset and clear
Symbol:

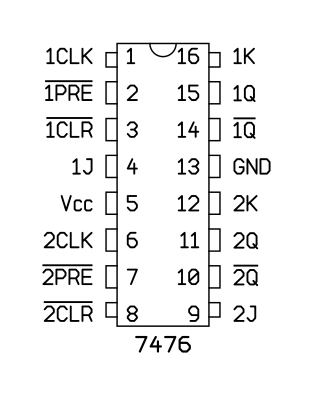

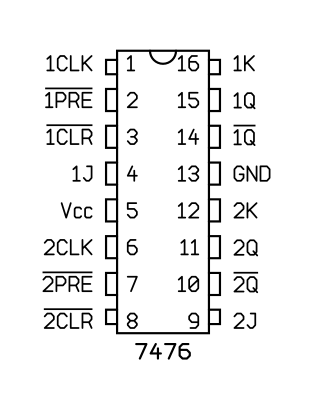

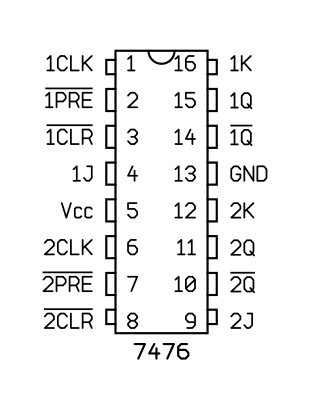

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN7476N
